Special chassis for fracturing equipment set
SINOTRUK has signed a cooperation agreement with the German company MAN, under which MAN would license exclusively its advanced TG truck and engine technology to SINOTRUK, implement strict European design and testing standards in China, produce and sell the new generation of high-end heavy trucks with the quality which “can replace imports'.

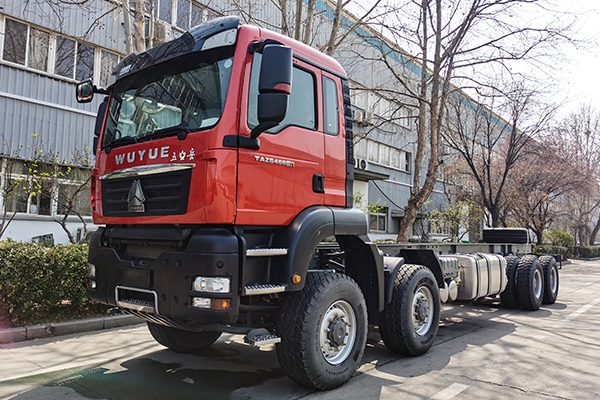

The fracturing truck chassis developed by Taian Wuyue Company based on the TGA truck and engine technology of MAN platform, in strict accordance with the GB1589 standard, is the special chassis for fracturing equipment set tailored for the needs of the petroleum industry, with a total weight of 41t, 44t, 46t, 48t and 55t. It can be applied not only to fracturing trucks, but also to oilfield work vehicles with requirements of off-road riding such as sand mixing, coiled tubing, manifolds, and liquid nitrogen.
| Chassis model | TAZ5466TYT | TAZ5446TYT | TAZ5416TYT | TAZ5466TYTA | TAZ5556TYT | ||
| Dimension, performance and parameters | Driving form | 8×6 | 8×8 | 10×8 | |||
| Dimensions (length×width×height) mm | 11870×2550×3645 | 11240×2550×3650 | 10810×2550×3370 | 11870×2550×3645 | 13490×2550×3990 | ||
| Maximum allowable gross mass of chassis (kg) | 46000 | 44000 | 41000 | 46000 | 55000 | ||
| Chassis curb weight (kg) | 15000 | 14700 | 14000 | 15000 | 16500 | ||
| Wheelbase (mm) | 1800+5400+1470 | 1800+4800+1470 (Optional 1800+3800+1470) | 1800+5400+1470 | 1800+5500+1400+1400 | |||
| Front/rear suspension (mm) | 1490/1710 | 1490/1680 | 1490/1250,2180,2400 | 1490/1710 | 1490/1890 | ||
| Top speed (km/h) | 80 | ||||||
| Minimum turning radius (m) | 17 | 15 | 15 | 17 | 18 | ||
| Main assembly | Cab | Model | |||||
| Engine | Model | MC13.54-61 | MC13.50-61 | MC13.54-61, optional | MC13.54-61 | MC13.54-61 | |
| MC13.50-61, MC11.46-61 | |||||||
| Rated power (Kw/ (r/min)) | 400/1900 | 371/1900 | 400/1900 | 400/1900 | 400/1900 | ||
| Maximum torque (N·m/ (r/min)) | 2500/（1000～1400） | 2400/（1000～1400） | 2500/（1000～1400） | 2500/（1000～1400） | 2500/（1000～1400） | ||
| Gearbox | Model | ZF 16S2530 TO | |||||
| Ratio | 13.8～0.84 | ||||||
| Front axle | Model | MVP09 | MVP09 | ||||
| Rear axle | Model | MCP16 | 16-ton air suspension axle | ||||
| Tyre | Model | Front tyre: 425/65R22.5 | Front tyre: 385/65R22.5 | Front tyre: 315/80R22.5 | Front tyre: 425/65R22.5 | Front tyre: 385/65R22.5 | |
| Rear tyre: 12.00R20 | Rear tyre: 315/80R22.5 | Rear tyre: 315/80R22.5 | Rear tyre: 12.00R20 | Rear tyre: 315/80R22.5 | |||
| Frame | Type | Welded frame, no need to install a subframe | |||||
